APTM-SL
Panel MIMO UHF - SLANT

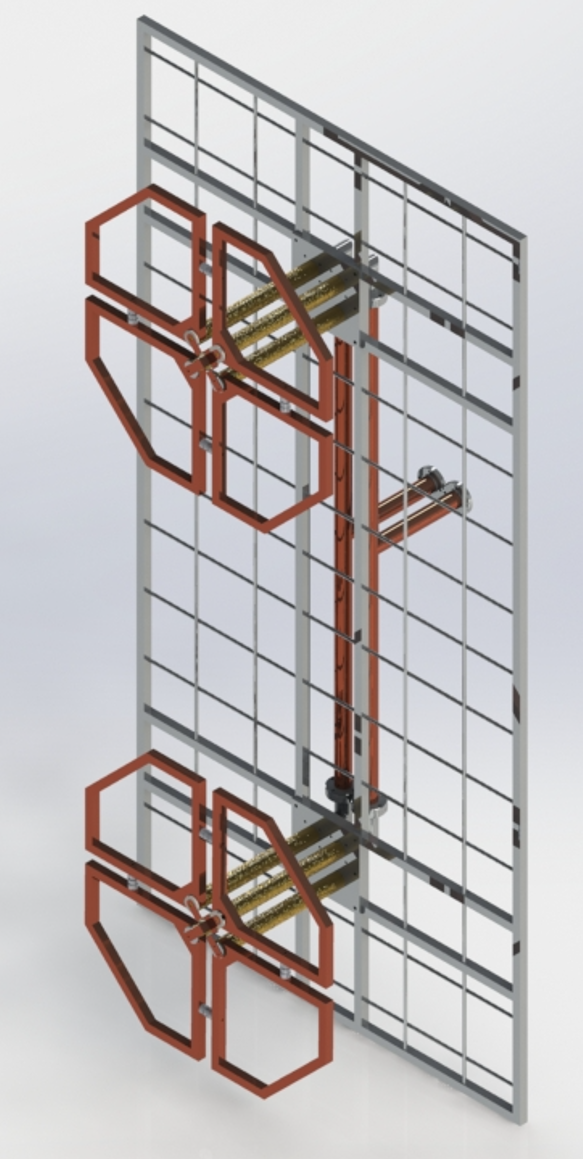

The EFTX MIMO VHF Pol. H/V Panel Antenna is designed for demanding TV 3.0 transmissions, featuring a flexible, robust, and lightweight single-panel or composite design. Its dual-polarization MIMO arrangement ensures high spectral efficiency and interference robustness, with over 35 dB cross-polarization isolation. Offering 7.9 dBd gain, it provides broad, uniform coverage with excellent VSWR (<1.05 for 174-186 MHz, <1.2 for up to 216 MHz option 310Mhz). It features a polished aluminum finish and silver-plated brass connections for durability in harsh environments.
Desempenho RF
Diagramas de irradiação
Alterne o corte, a projeção e a unidade sem recarregar a página.
Especificação consolidada
Dados técnicos
Características elétricas
| Faixa de frequência | 174–320 MHz |
|---|---|
| Ganho | 10.05 dBi |
| Origem do ganho | Referência cadastral |
| HPBW horizontal | 61.061 ° |
| HPBW vertical | 73.6576 ° |
| Polarização | Slant +- 45 graus |
| Potência máxima | 5 W |
| Conector | EIA 1 5/8 inch |
| Cross-Pol Isolation | > 35 dB at 360° |
| RF Input Connector | EIA 1 5/8 inch |
| Maximum Power | 5 kW per port |
| VSWR (Channels 7 & 8) | < 1.06:1 |
| VSWR (up to Channel 13) | < 1.20:1 |
Características mecânicas
| Peso | 13 kg |
|---|---|
| Dimensões | 900 mm x 1800 mm x 300 mm |
| Número de elementos | — |
| Dimensions (LxHxD) | 900 mm x 1800 mm x 300 mm |
| Weight | 13 kg |
| Wind Load (at 160 km/h) | Frontal: 810 N; Lateral: 700 N |
| Maximum Wind Speed | 225 km/h |
Condições ambientais
Dados ambientais não informados no cadastro técnico.
Controle e interfaces
| RET | — |
|---|---|
| AISG | — |
| Conector | EIA 1 5/8 inch |
